How to use build assemblies in eQuip.

Build Assemblies

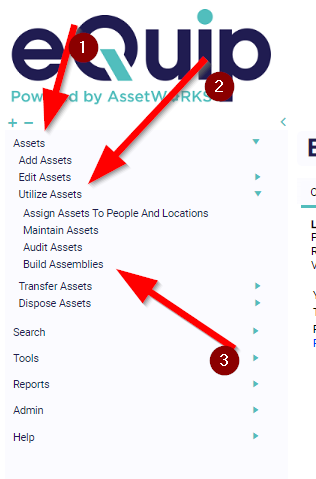

• Go to ASSETS> Utilize Assets Build Assemblies

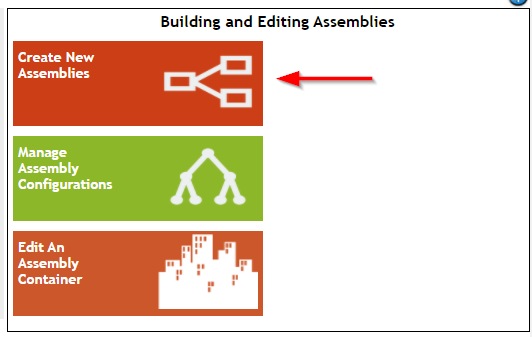

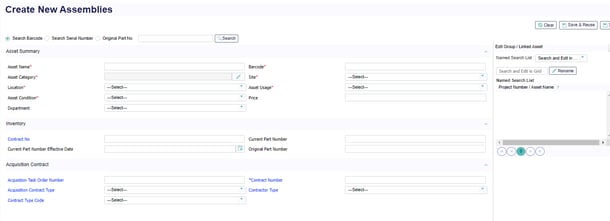

• Choose Create New Assemblies


• Fill in values for at least the required fields on the asset form

• • The asset fields that have a blue font for the asset field name will be updated in bulk on the assets in the container

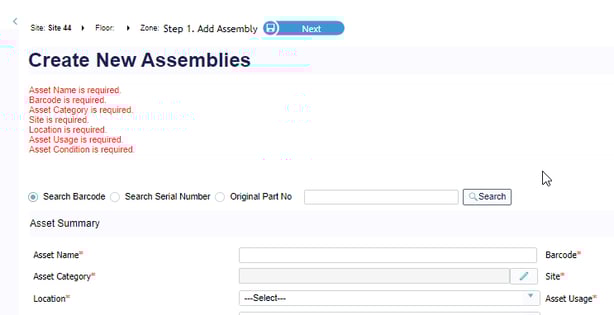

• Failure to enter a value for the required fields before choosing Save will result in a message like the one below

• • It is not possible to save the container without entering a value for every required field


• When finished entering field values choose Save and then choose Next

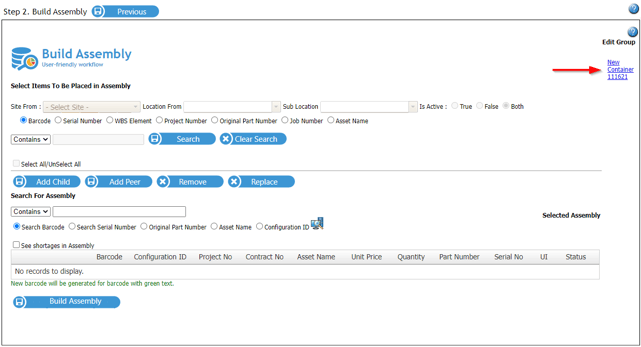

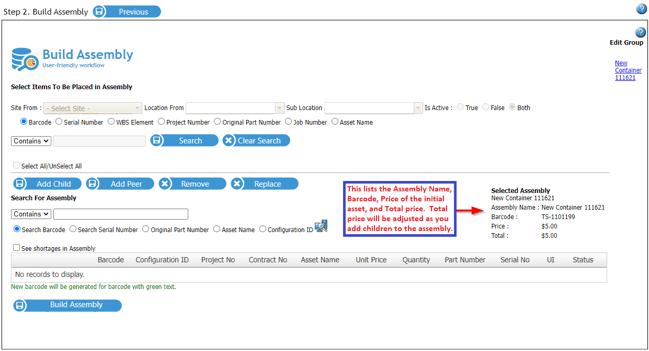

• On the next screen choose the link for the container that we just created


•  The Selected Assembly information will then be populated

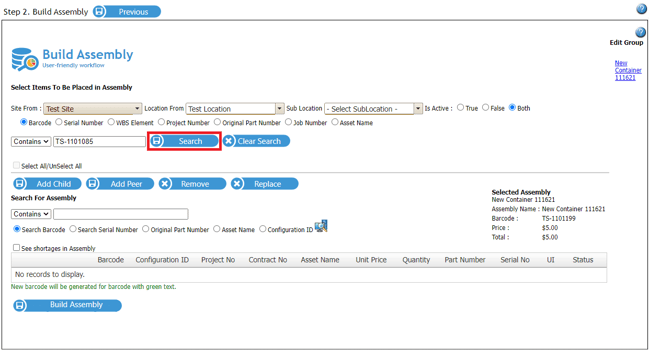

• After entering the information in the search fields choose Search


• Once you find the part that you want to add to the assembly click the checkbox next to the asset name

• • This will select the asset to be added as a child

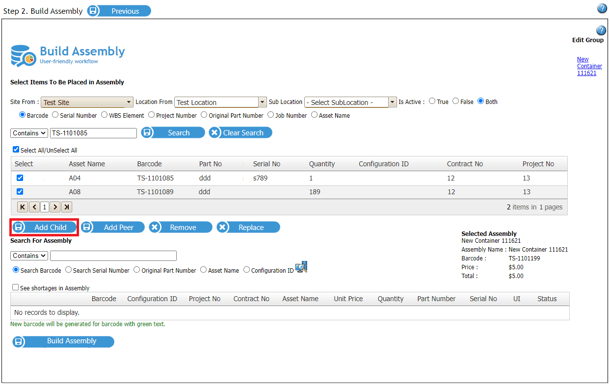

  • Choose Add Child


• If there is an asset that you need to remove from your list:

• • Check the box for the asset

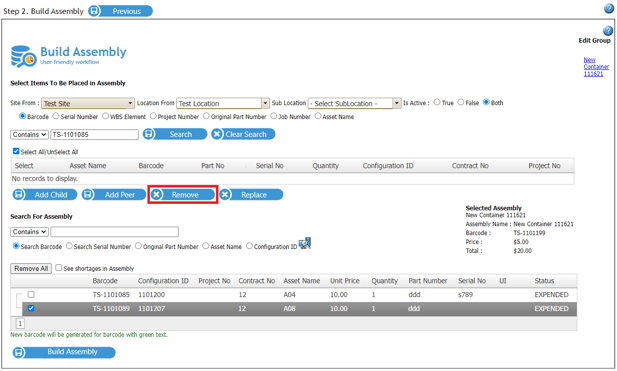

  • Choose the Remove button

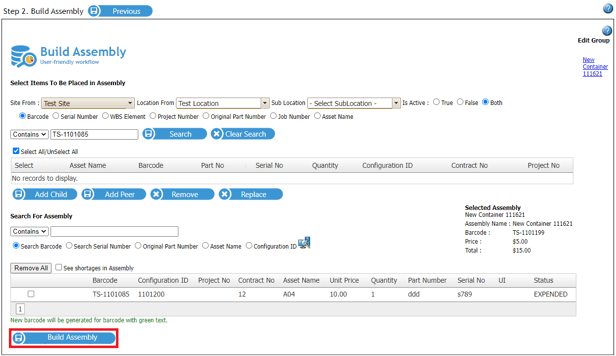

• Once you have all the parts that you would like to add choose Build Assembly

• • You will receive a system message: Assembly Build successfully.

• • You will be back at the Build Assembly screen
