How to import data in eQuip.

Importing Data In eQuip

To import data into the system, you will first need to access the Data Importer

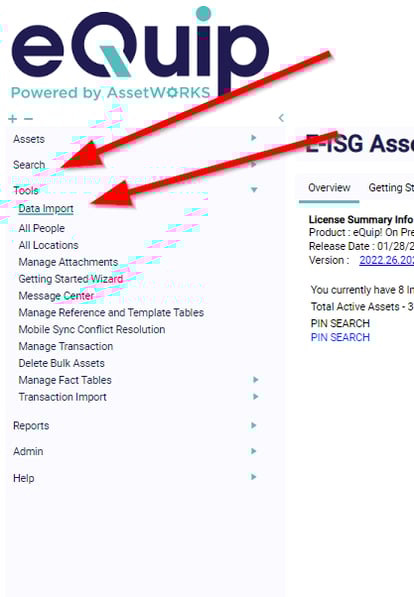

• Go to TOOLS>Data Import

• • Note: The first time a user accesses the Data Importer, it may be blocked by the pop-up blocker

​​

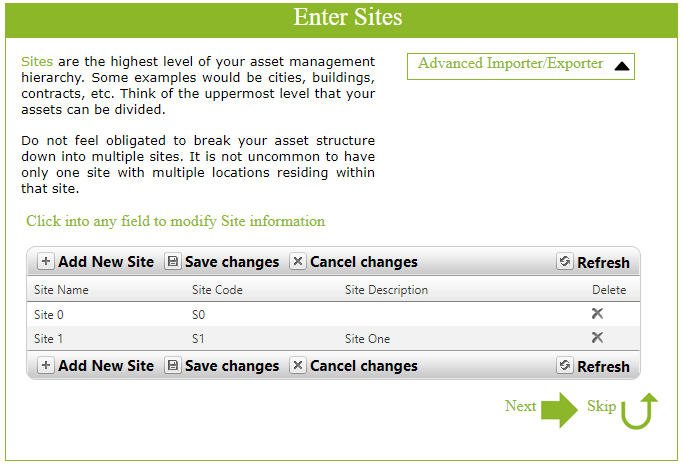

Importing Sites

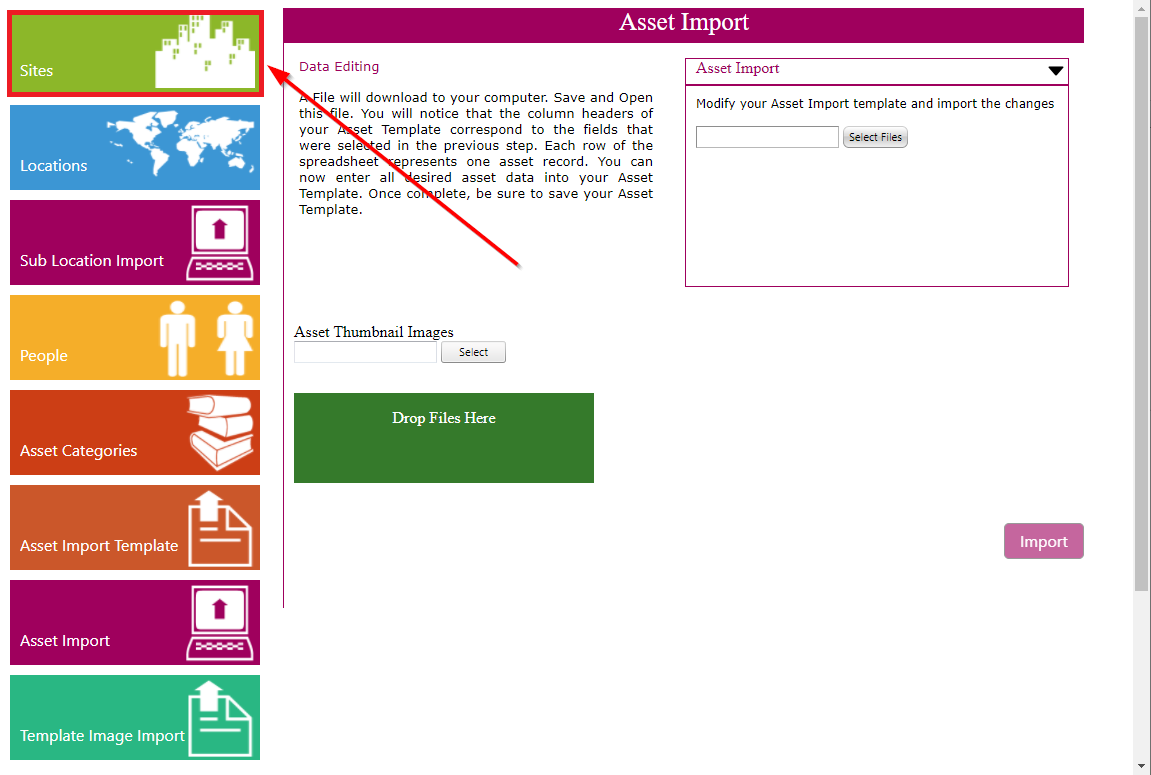

• Choose Sites


Entering new sites manually:

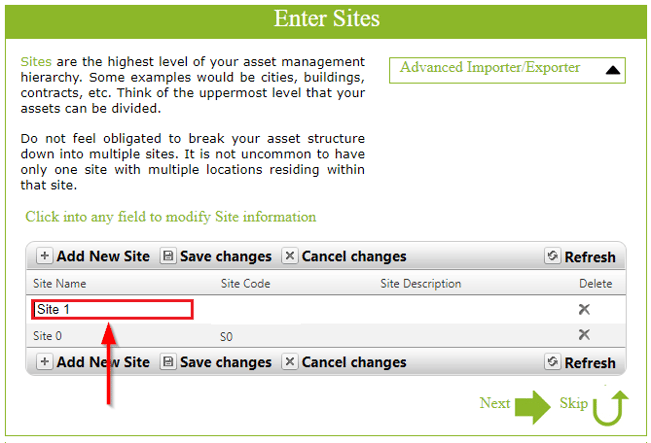

• Choose Add New Site


• Enter Site Name

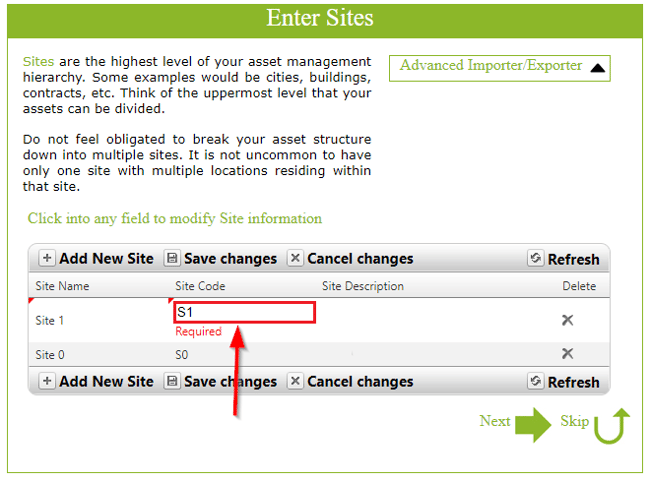

• Enter the Site Code (An abbreviation of the site name *Required*)

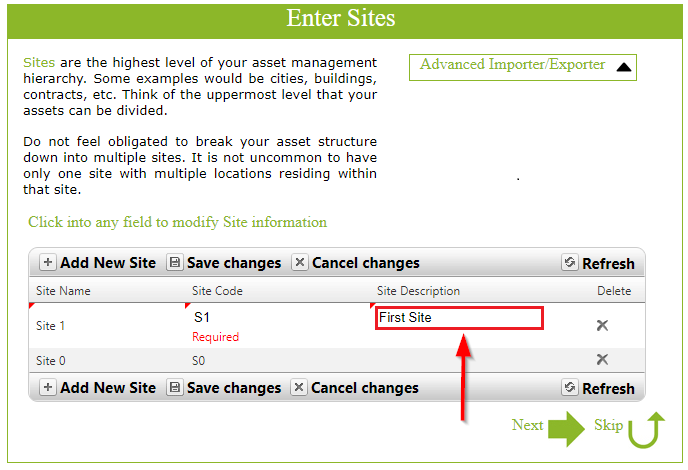

• Enter the Site Description (optional)

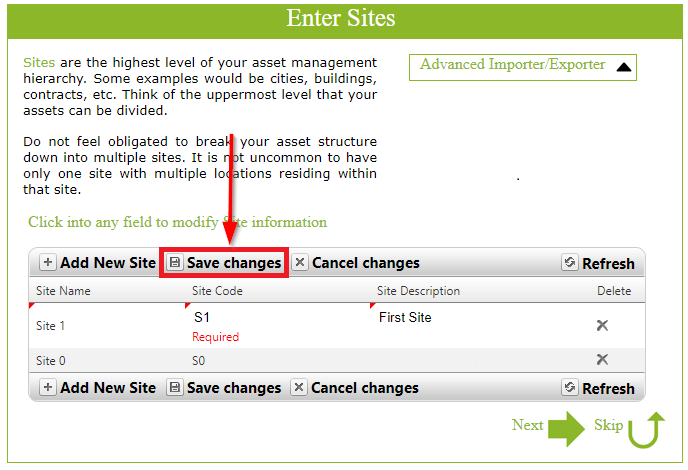

• The red arrows in the upper left-hand corner of each field indicate that you have not saved the changes that you made

• • Choose Save Changes


• The new site is now saved in eQuip



It is also possible to import sites in bulk

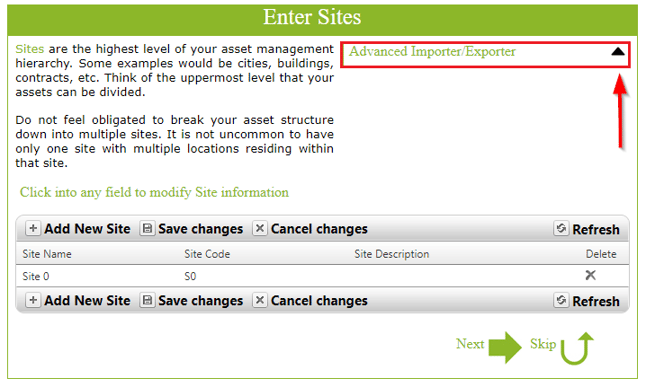

• Choose Advanced Importer/Exporter

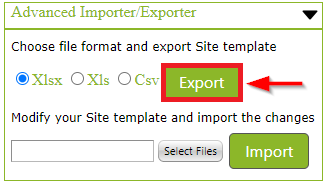

• • Choose Export

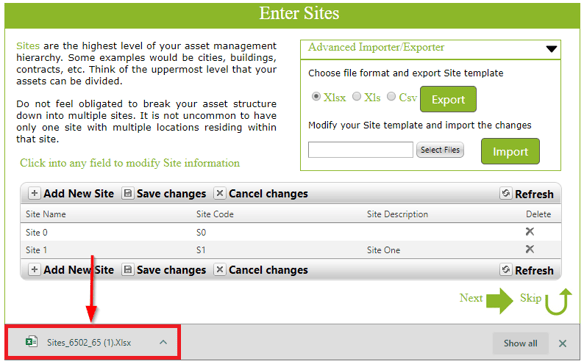

• • A template will download to your Downloads folder

• • • Choose the link in the lower left-hand corner of the window


• Populate the cells that are highlighted below in the template

• • SiteID (leave blank)
  • Site Name (required)
  • Site Code (required)

• • Site Description (optional)
  • Save the template and close it


• Choose Select File

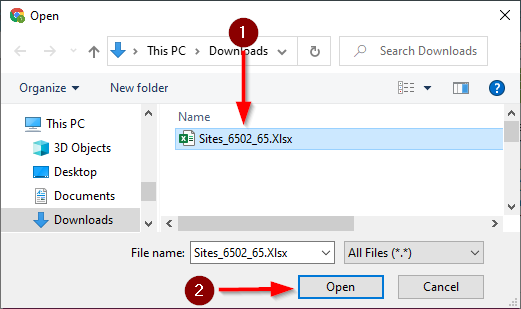

• • Locate the file in your Downloads folder

• • Choose Open


• • Choose Import

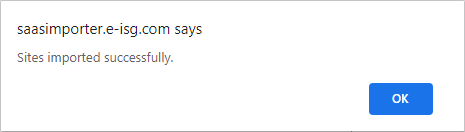

• You will receive a success message

• • The new sites now exist in eQuip



Importing Locations

• Choose Locations

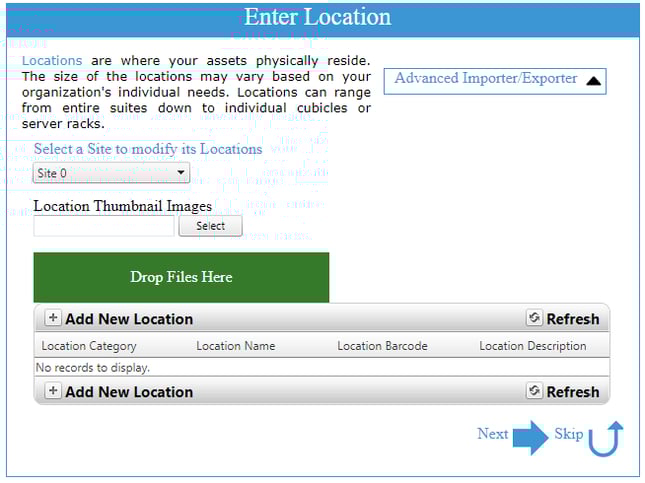

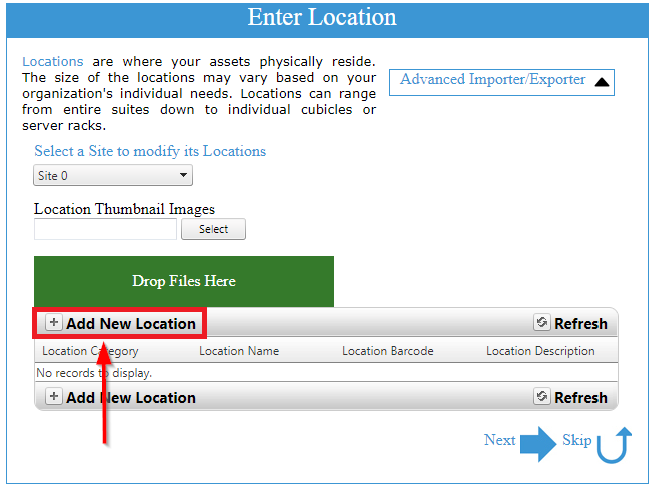

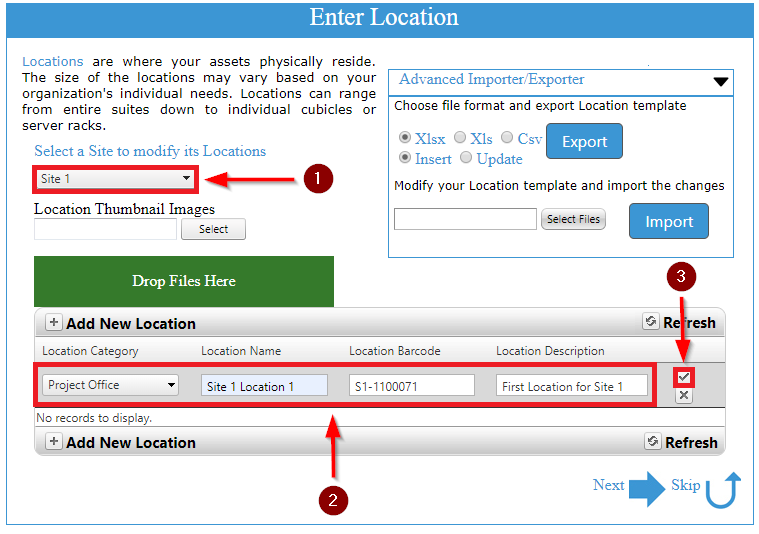

• Choose Add New Location


•  Choose the site that you are creating the location under from the dropdown

• • Enter values for the following fields:

• • • Location Category (required/choose a value from the dropdown list)
    • Location Name (required/manually)
    • Location Barcode (required/generates automatically)

• • • Location Description (optional/enter manually)

• • Choose the check mark to save the location information

• • • The location is now saved in eQuip



It is also possible to import locations in bulk

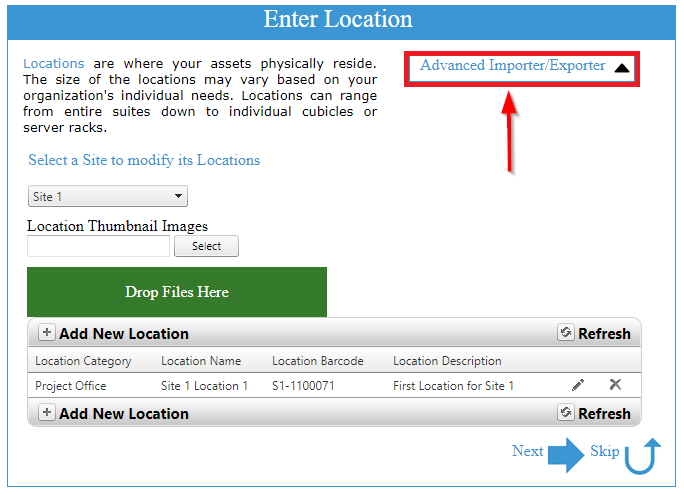

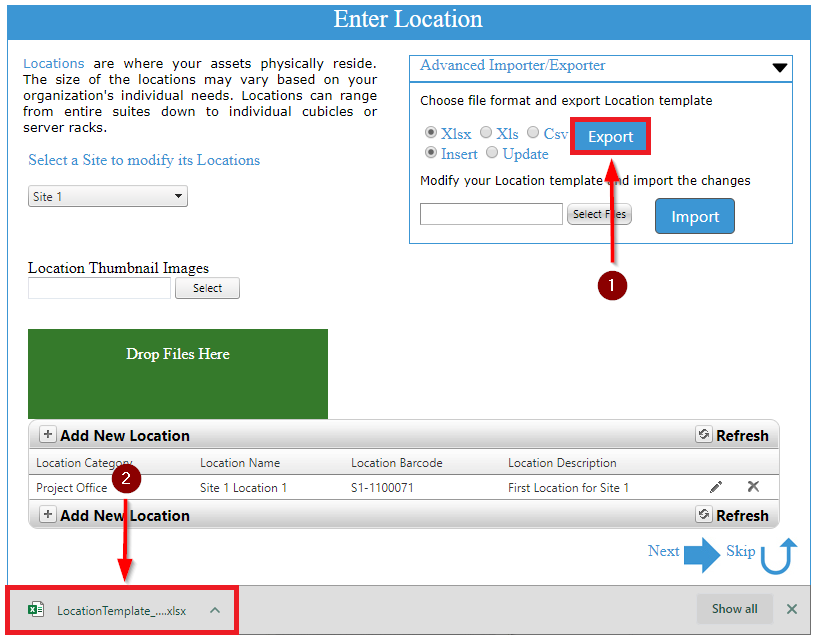

• Choose Advanced Importer/Exporter


• Choose Export

• A template will download to your Downloads folder

• • Choose the link in the lower left-hand corner of the window

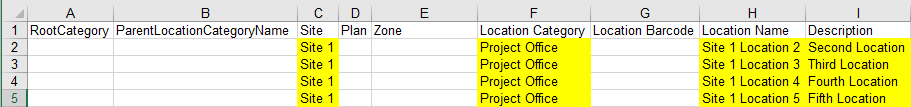

• Populate the cells that are highlighted below in the template

• • Site (required)
  • Location Category (required)
  • Location Name (required)
  • Description (optional)
  • Save and close the template

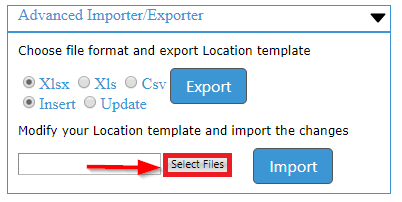

• Choose Select Files

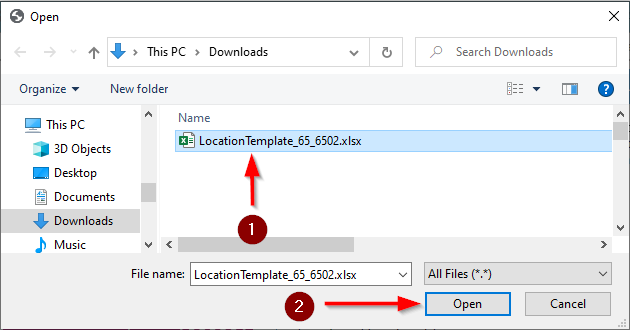

• Locate the import template in your Downloads folder

• • Choose Open

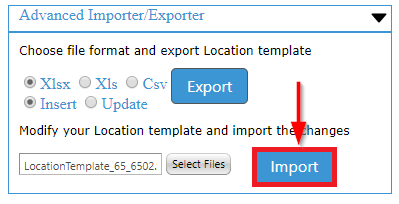

• Choose Import


• • You will receive a success message

• The locations now exist in eQuip



Importing Sublocations

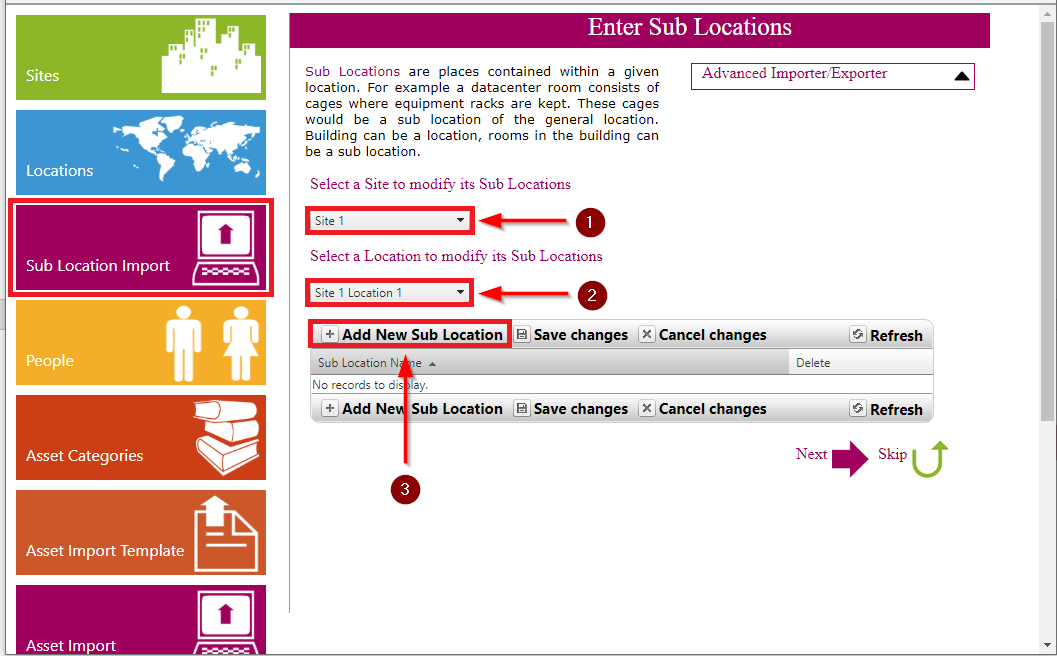

• Choose the Site that you want to create the Sub Location under
• Choose the Location that you want to create the Sub Location under

• Chose Add New Sub Location

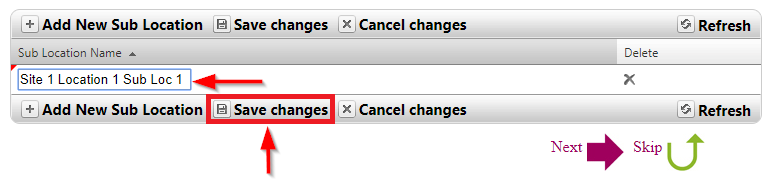

• Enter a name for the Sub Location

• • Choose Save Changes

• • The Sub Location now exists in eQuip



It is also possible to import sublocations in bulk

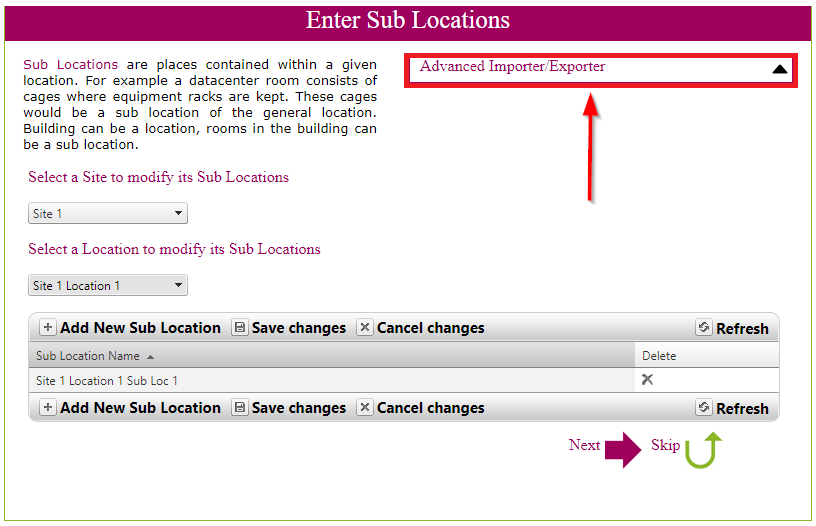

• Choose Advanced Importer/Exporter


• Choose Export

• • Choose the link in the lower left-hand corner of the window

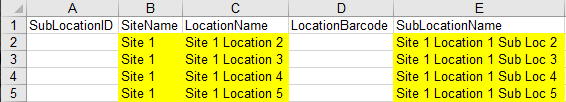

• Populate the cells that are highlighted below in the template

• • SiteName

• • LocationName
  • SubLocationName

• Save and close the template

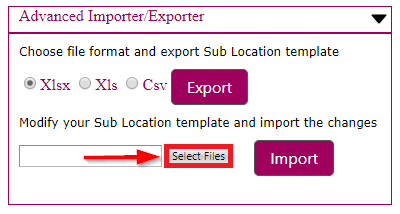

• Choose Select Files

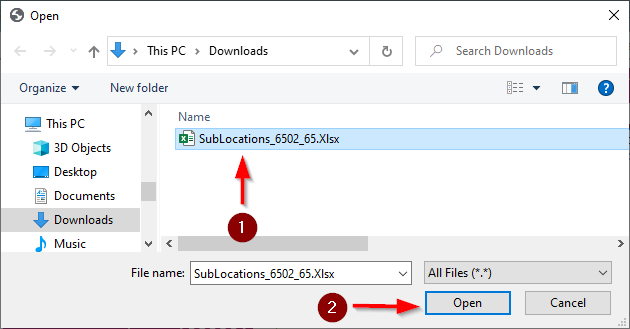

• Locate the import template in your Downloads folder

• • Choose Open

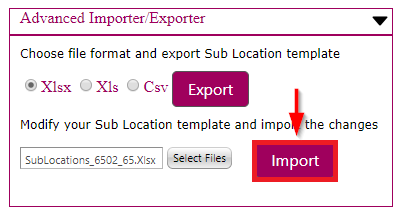

• Choose Import

• • The sub locations now exist in eQuip



Importing People

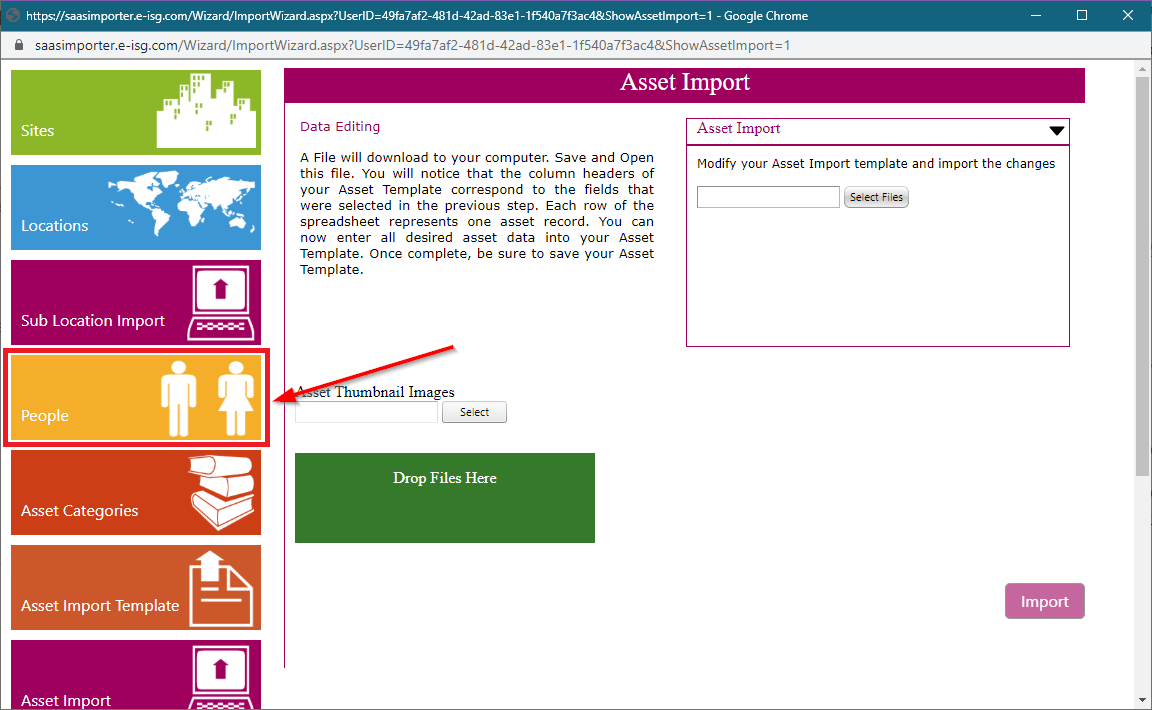

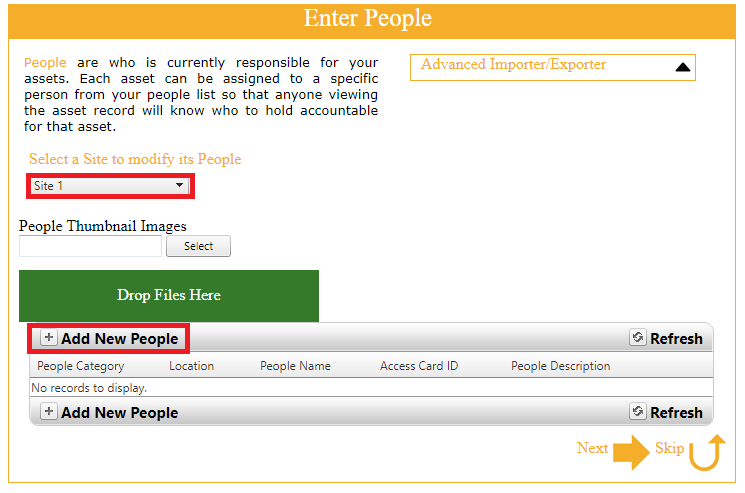

• Choose People

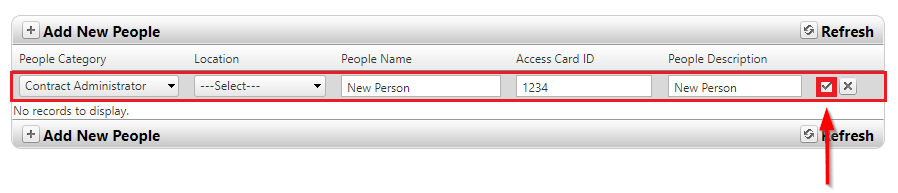

• Entering People manually


• Enter values for the following fields

• • People Category (choose value from dropdown)
  • Location (optional, choose value from dropdown)
  • People Name (required, enter manually)
  • Access Card ID (optional, enter manually)
  • People Description (optional, enter manually)

• Choose Save
• The new person is now in eQuip


It is also possible to import people in bulk

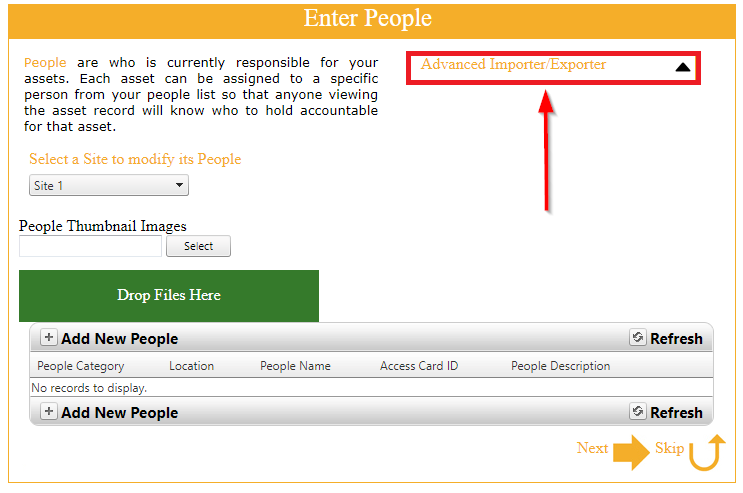

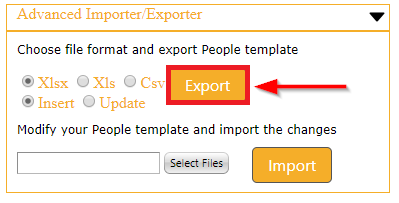

• Choose Advanced Importer/Exporter


• Choose Export

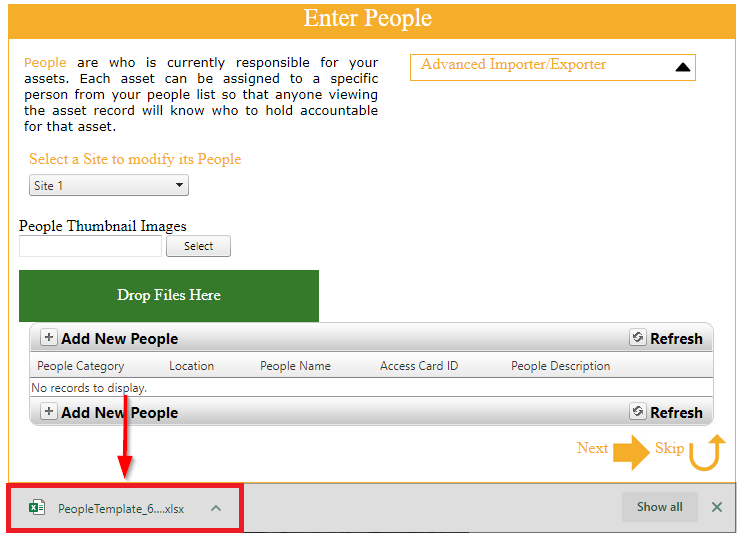

• Choose the link in the bottom left-hand corner of the window to download the template

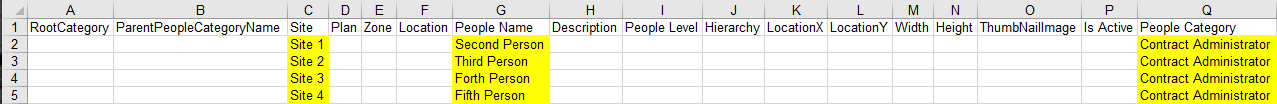

• Enter values for the highlighted cells (at a minimum)

• • Location and Description are optional

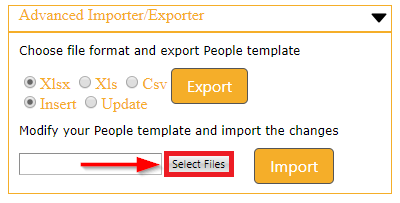

• Choose Select Files

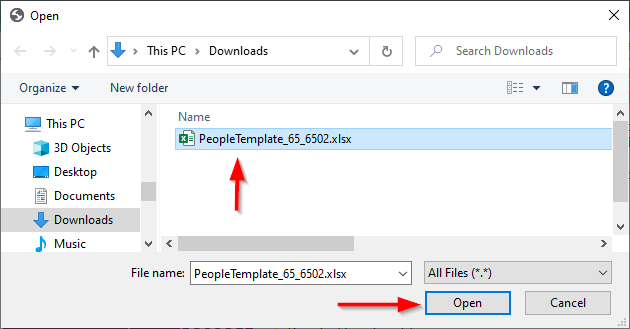

• Locate the import template in your Downloads folder

• • Choose Open

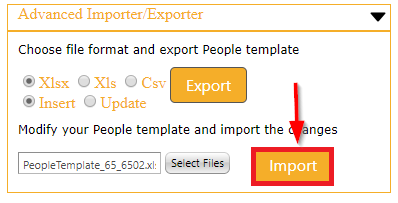

• Choose Import

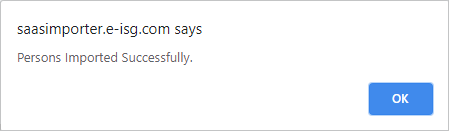

• You will receive a success message

• • The new people now exist in eQuip



Importing Assets

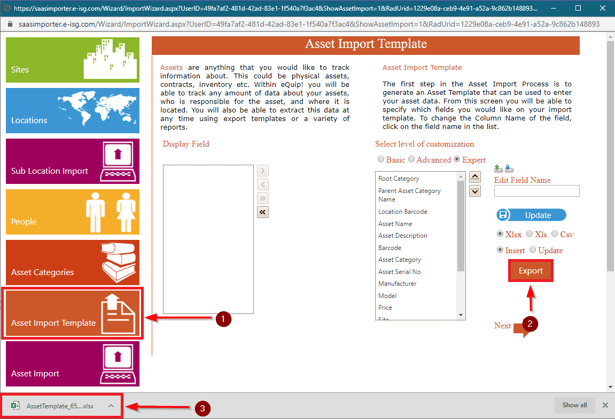

• Choose Asset Import Template

• • The righthand column on the Asset Import Template screen contains the list of Column headers the Importer is looking for
  • Selecting Basic/Advanced/Expert above the righthand column will display additional fields that can be added to the user’s list of columns

• • • Basic shows the Required fields from the system. Typically this will be blank as those fields are already on the list of column headers
    • Advanced shows commonly used fields, a full listing of all fields on the Asset Summary and Inventory tabs

• • • Expert breaks down all the fields in the system based on the tabs. A dropdown will appear and the fields will populate based on the selected entry in the dropdown

• • Choose Export
  • Open the template by choosing the link in the lower-left corner

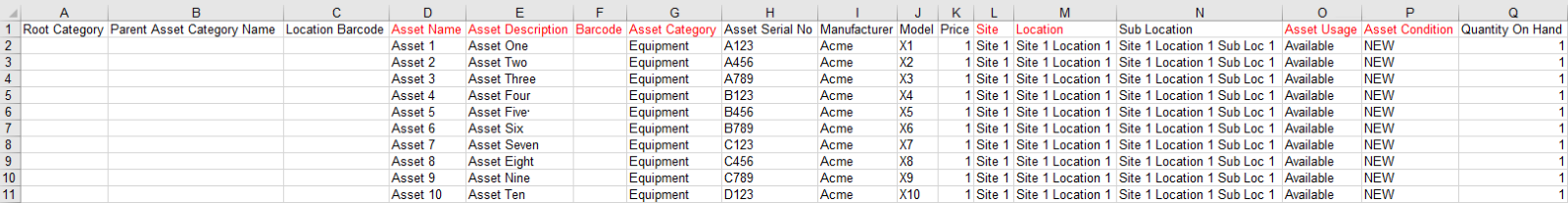

• Populate your asset information

• • • Save and close the template

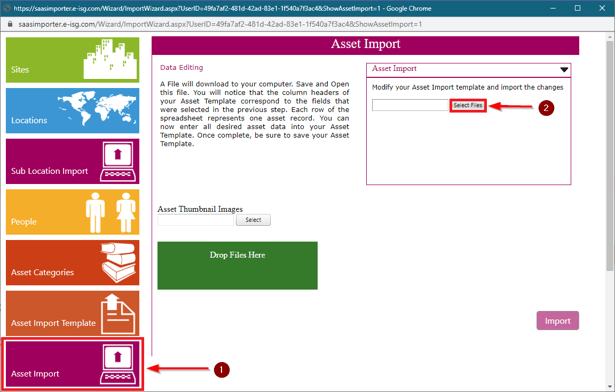

• Choose Asset Import

• • Choose Select Files

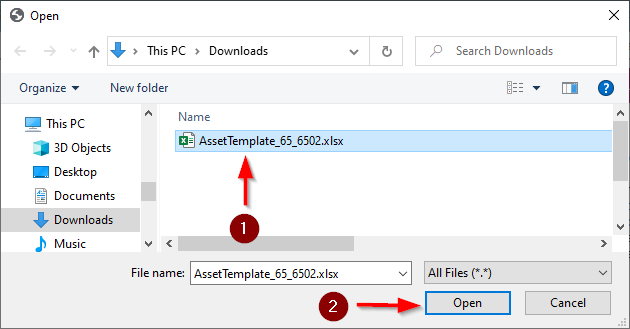

• Locate the file

• • Choose Open

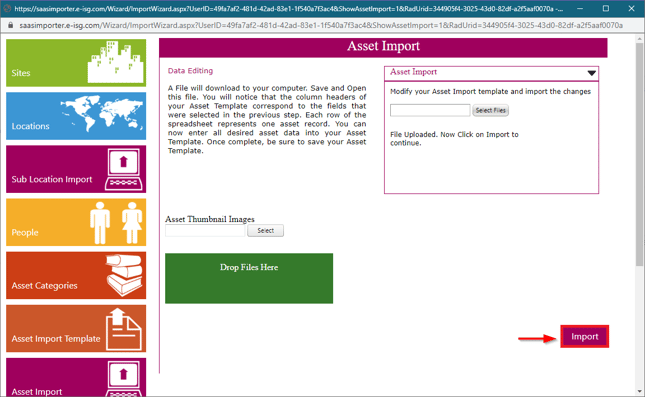

• Choose Import


• After some time you will receive a success message
• Your assets are now in eQuip


Rejection Files and Common Error Types

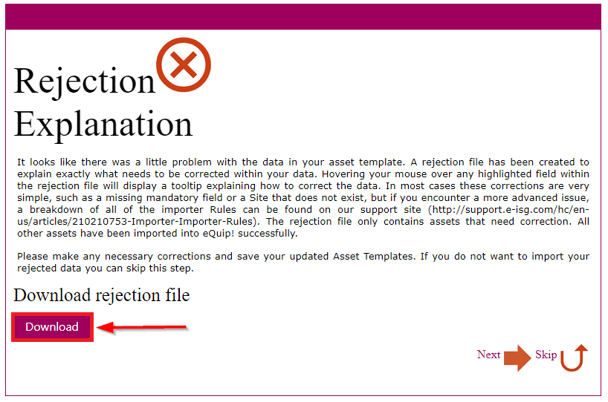

• If eQuip finds an error with the imported spreadsheet, it will create a Rejection File

• • The Rejection File will only contain assets that were rejected. Assets with no errors will be imported from the original file.
  • Chose Download to download the rejection file


• The most common mistakes made during the import process include:

• • Missing required fields

• • Date formatting
  • $ in Price field
  • Max field length
  • Duplicated Barcode

• A missing required field will result in the following comment on the affected cell(s):


• A Date formatting issue will result in the following comment on the affected cell(s):


• Including a $ in a Price will result in this comment on the affected cell(s):

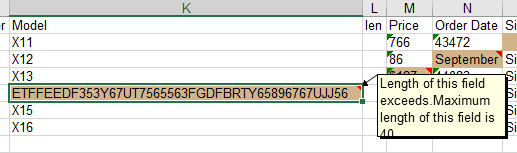

• A case where the value in a cell exceeds an asset field’s maximum character length results in this message:

A duplicate Barcode will result in "Duplicate Barcode" comment on the affected cells.
