How to create system messages in eQuip.

Creating System Messages in eQuip

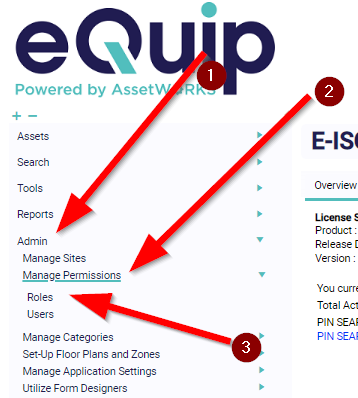

• On the eQuip dashboard, go to ADMIN > Manage Permissions > Roles.


Messages

• Choose the Messages tab.

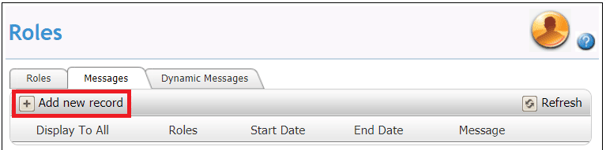

  • Choose Add New Record.

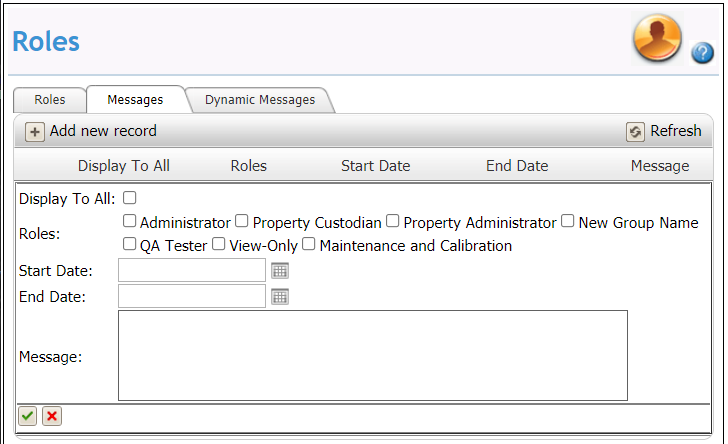

• Enter values for each field:

• • Display To All: – check (TRUE) or leave unchecked (FALSE)
  • Roles: – choose the specific roles whose users should see the message (requires leaving Display To All unchecked)
  • Start Date: – the day that you would like the message to start displaying
  • End Date: – the last day that you want the message to display
  • Message: – the actual message that you want to be displayed

• Choose the green check mark button to save your work when you are finished entering values

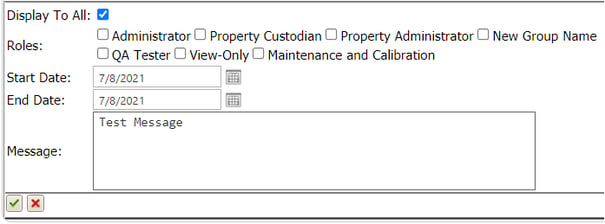

• Enter the following values:

• • Display To All:  Checked (TRUE)

• • Start Date:  7/8/2021 (or today’s date)
  • End Date:  7/8/2021 (or today’s date)
  • Message:  Test Message


• Return to the eQuip dashboard

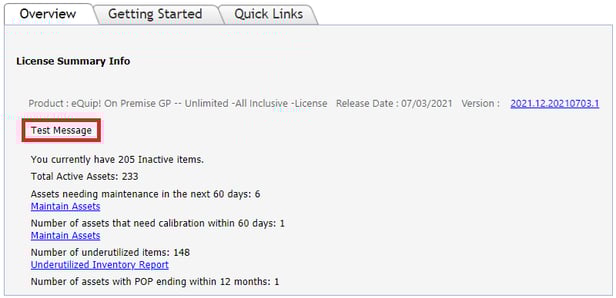

• • The message is now visible


Dynamic Messages

On the eQuip dashboard, go to ADMIN > Manage Permissions > Roles.

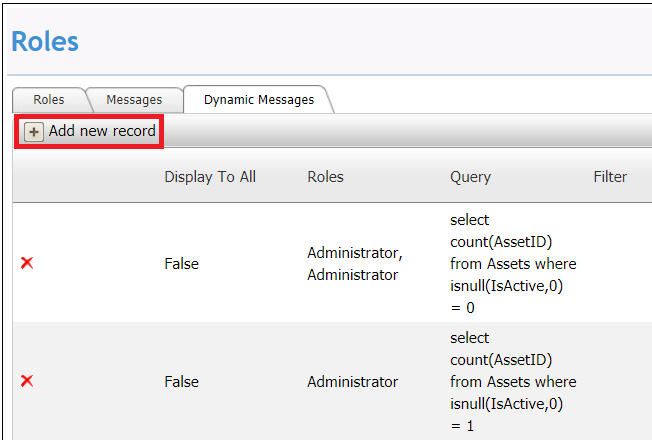

• Choose the Dynamic Messages tab.

• • Choose Add New Record.


• Enter values for each field:

• • Display To All: – check (TRUE) or leave unchecked (FALSE)
  • Roles: – choose the specific roles whose users should see the message (requires leaving Display To All unchecked)
  • Query: - enter the query that will populate the values required for the dynamic message

• • Filter:  (not used very often)

• • • Site – narrows down the values pulled back by the query by site.
    • Plan – narrows down the values pulled back by the query by plan.
    • Zone – narrows down the values pulled back by the query by zone.
    • Location – narrows down the values pulled back by the query by location.

• • Message: – the actual message that you want to be displayed
  • Email: - no longer valid (being phased out)
  • Report: - choose (from the dropdown) which report you would like to provide a link for (below the dynamic message
  • Spreadsheet Reports: - choose (from the dropdown) which spreadsheet report you would like to provide a link for (below the dynamic message
  • Coordinated Workflows: - choose (from the dropdown) which coordinated workflow you would like to provide a link for (below the dynamic message

• • Asset Tracking Workflows: - choose (from the dropdown) which asset tracking workflow you would like to provide a link for (below the dynamic message
  • User Scope: - check this box if you will include in the query the necessary code to narrow down the returned values by user scope

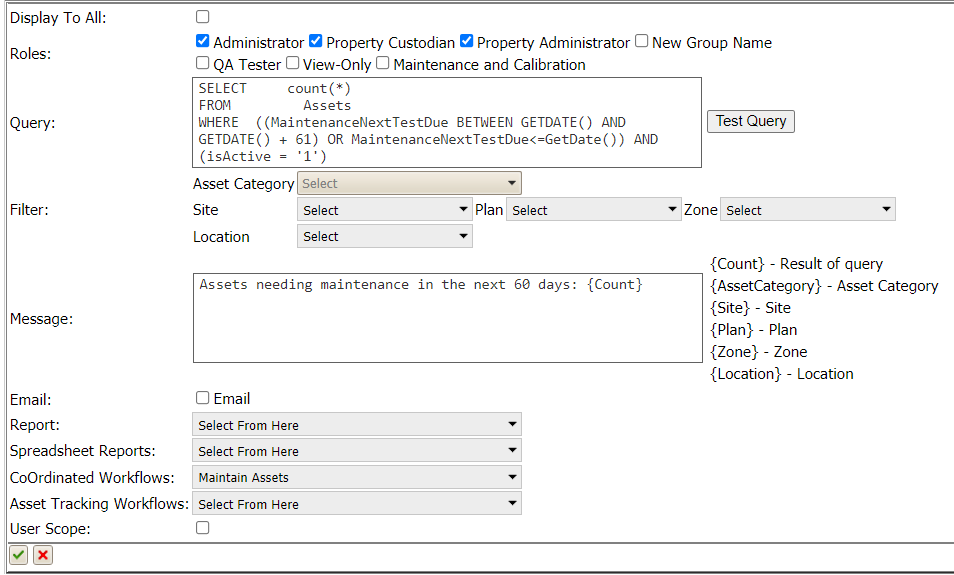

• As an example here are the values that you would enter for a dynamic message to return the number of assets needing maintenance in the next 60 days:

• • Display To All:  leave the box unchecked (FALSE)

• • Roles: - choose the appropriate roles for the users that you would like to have access to the dynamic message

• • • Administrator
    • Property Custodian
  • Property Administrator

• Query:

SELECT     count(*)

FROM         Assets

WHERE  ((MaintenanceNextTestDue BETWEEN GETDATE() AND GETDATE() + 61) OR MaintenanceNextTestDue<=GetDate()) AND (isActive = '1')

• • Filter: - N/A

• • Message: - Assets needing maintenance in the next 60 days: {Count}
  • Email: - N/A
  • Report: - N/A
  • Spreadsheet Reports: - N/A
  • Coordinated Workflows: - Maintain Assets

• • Asset Tracking Workflows: - N/A
  • User Scope: leave unchecked (FALSE)

• When finished entering values choose the green check mark button in the lower left-hand corner


• Return to the eQuip dashboard

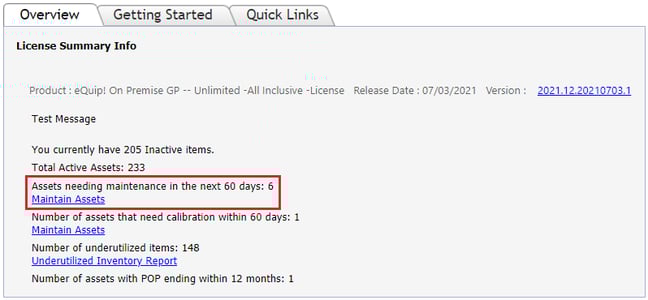

• The dynamic message appears with the link to the Maintain Assets workflow below it
